Oil

Brand new VDO type oil pressure sender.

Input: 0-150 psi.

Output: 10-180 ohms resistance, case grounded.

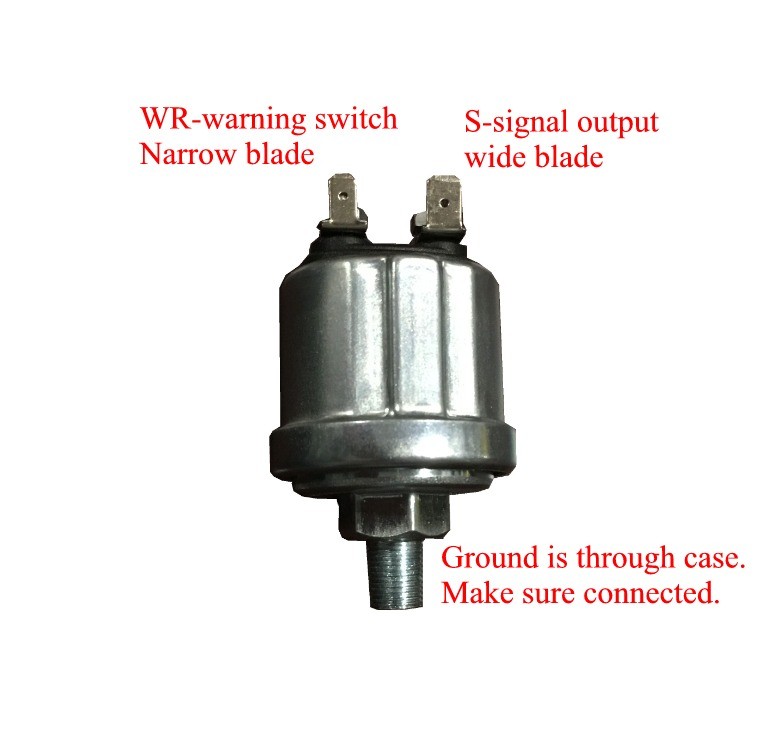

Wiring: case for grounding. S for resistance output, 10 - 180 ohms; WK for low pressure (30 psi) warning output, it is a switch to ground (case). 30 psi alarm is the best (20%) point for 150 psi pressure sender.

When pressure is bigger than  30 psi, the WK switch will be open.

When pressure is smaller 30 psi, the WK switch will be closed, or connect to ground.

Accuracy: within 5% full scale.

Thread: 1/8”-27 NPT. See our fitting set for other thread size below.

White zinc environment friendly plated, RoHS compliante.

Wiring connectors: blade and socket.

Dimensions: body diameter 1.76", body length 1.5", total length 3".

This is a high quality, high reliable sender, can be used in gas. This sender is made by our specifications, using strong spring, high grade seal ring, etc.. Don't compare our senders to other unbranded, oversea, everybody sell product which will cost you much more in the future.

For different thread size, 1/4", 3/8", 1/2" NPT, see blow:
