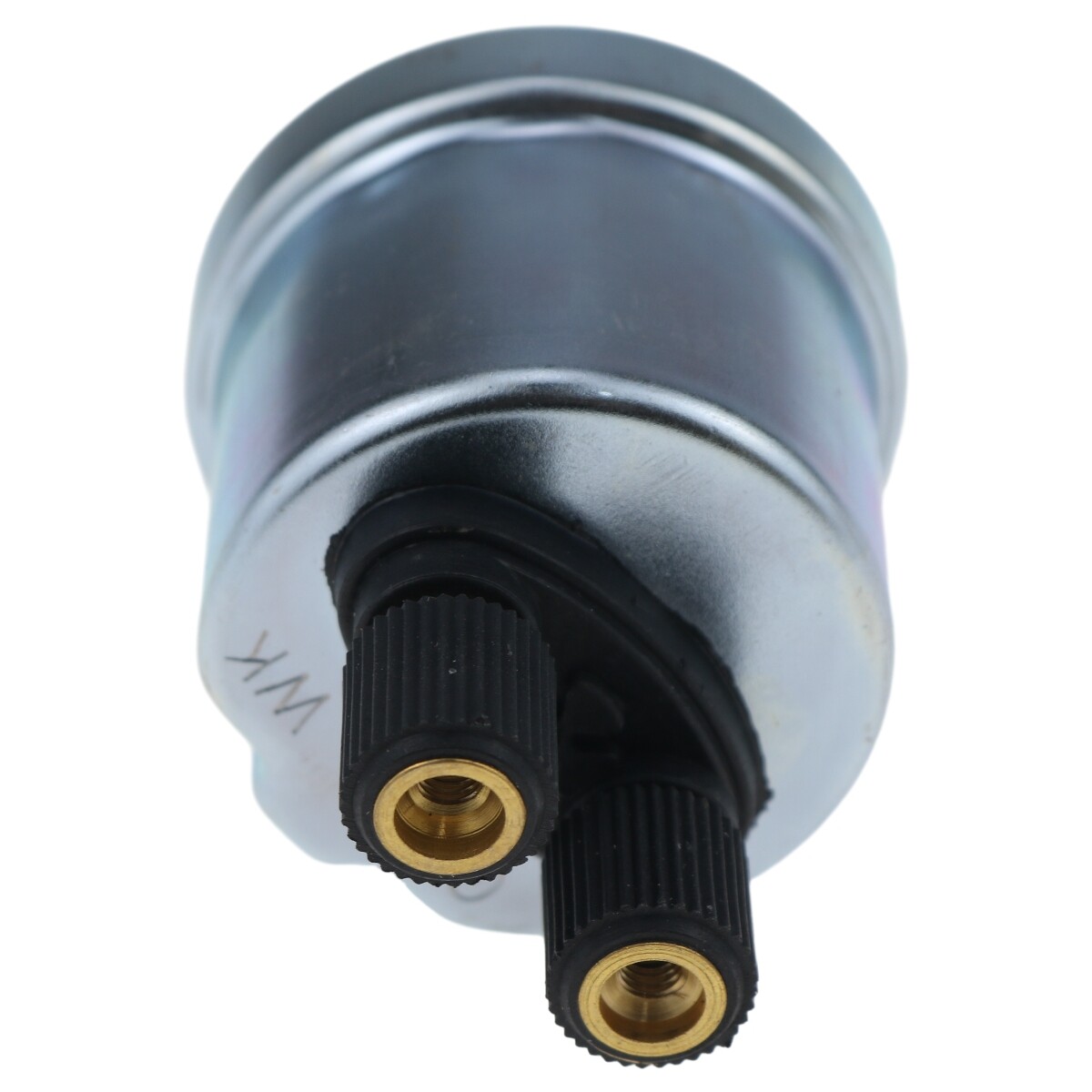

Vdo Engine Oil

Note:New aftermarket parts.Pls make sure both your part number & model match the listing before purchase. Contact us if you're not sure.thanks.

Part Number:
360-025, 360025, 360-081-030-015C, 360-081-032-014C

VDO Pressure Sender Description:
Range of measurement: 0-150psi
Alarm Pressure: 0.15±0.02 Mpa
Rated Power: 0.5W
Operation Temperature: -25℃~100℃
Over Pressure Safety: 1.5MPa
Voltage: 6V - 24V
Ground: Standard
Thread: 1/8" - 27 NPT
Connection: 2x Knurled Nut
Pressure medium: Oil - Fuel - Air

All Pressure senders are designed to work with VDO gauges only, unless otherwise noted. Senders are matched to gauges according to maximum reading on dial face.
All senders are standard ground (sender case to common ground).VDO senders have tapered threads and DO NOT require the use of Teflon tape or pipe sealant. This will interfere with grounding causing incorrect instrument readings.

Warnings:
VDO pressure senders are not to be used with any type of fuel application.
VDO pressure senders may not be used in automotive braking systems.
VDO pressure senders are not suitable for use in aircraft.
VDO Senders and Sensors: Using the expertise we’ve gained in developing solutions for many of the world’s leading vehicle manufacturers, we offer a large portfolio of pressure and temperature sensors. Unlike many companies today, we manufacture our sensors in our own ISO and TSO registered facilities, using the same quality materials, engineering processes and quality standards as our OE products. Our sensor range includes pressure sensors and switches, temperature sensors and switches, speed, RPM and rotational sensors and position sensors.

With optional features such as floating ground, warning contact point to control warning lights and/or warning alarms and dual station (twin gauge) capability, VDO sensors offer more choices to meet your specific needs. VDO pressure and temperature sensors are engineered to deliver maximum performance for years of trouble free service.
